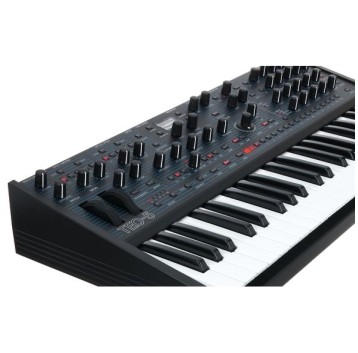

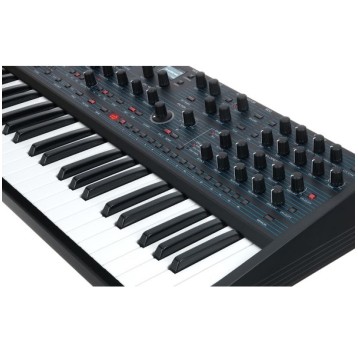

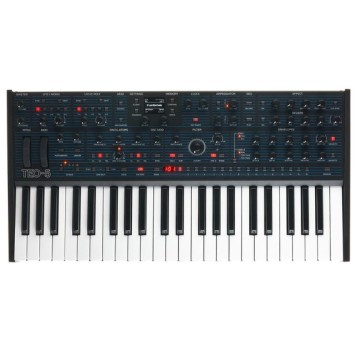

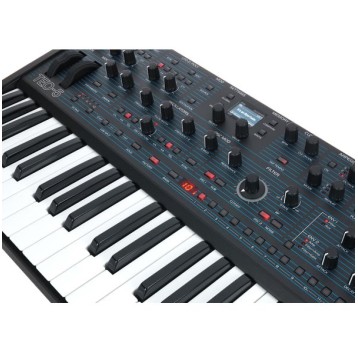

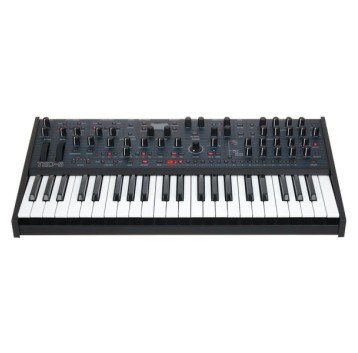

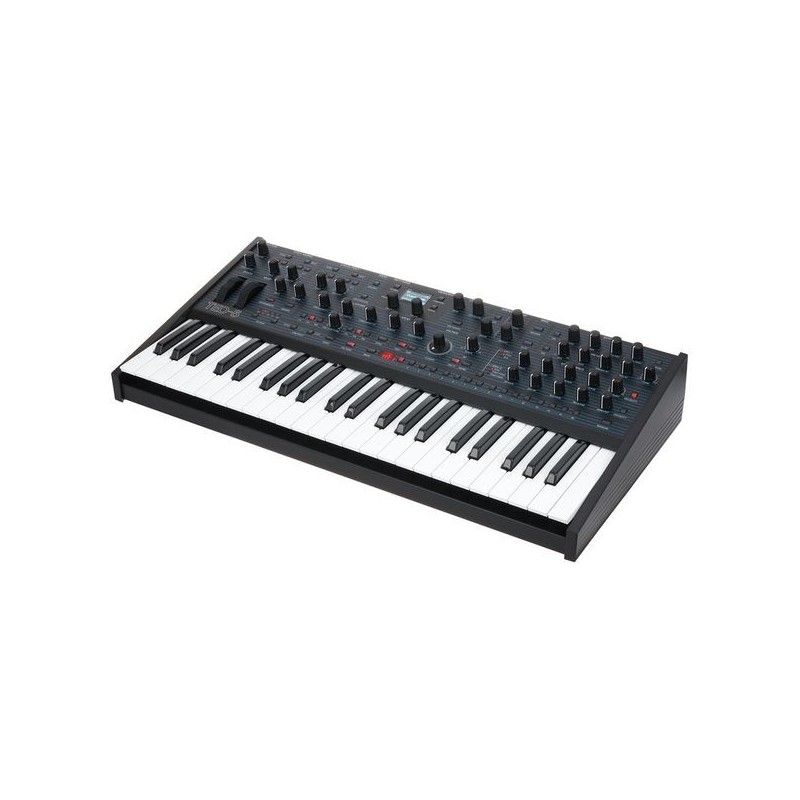

Oberheim TEO-5 5-Voice Polyphonic Analogue Synthesizer

TEO-5 5-Voice Polyphonic Analogue Synthesizer

Semi-weighted Fatar keyboard with 3.5 octaves, 44 keys with channel (mono) aftertouch with bipolar amount

VCO/VCF based

2 x VCO and sub-oscillator per voice

Selectable waveforms for each oscillator: triangle, sawtooth, variable pulse

Oscillator 1 syncs with Oscillator 2

Classic SEM filter with selectable band-pass mode

Bi-polar filter envelope value

Velocity modulation of the envelope

State control changes continuously from low-pass to notch to high-pass

Five-stage (DADSR) envelope generator

5 Waveforms: Triangle, sawtooth, inverted sawtooth, square and random (sample and hold)

LFO tempo synchronisation

Initial Amount setting

Freely assignable mod targets

Arpeggiator

Step sequencer with 64 steps

2x 24-bit / 48 kHz digital effects (reverb, delay, chorus, flanger and more)

256 User and 256 factory presets in 32 banks of 16 programs each

Pitch and mod wheel

Dedicated X-Mod control on the front panel

Display

Integrated power supply unit 100-240 V AC 50/60 Hz

Line outputs: 2 x 6,3 mm jack

Stereo headphone output: 6.3 mm jack

Foot switch input: 6.3 mm jack

Sustain pedal input: 6.3 mm jack

MIDI In/Out/Thru

USB

Dimensions (W x D x H): 635 x 324 x 112 mm

Weight: 7.7 kg
